NVIDIA BlueField-3 B3140H 900-9D3D4-0PNN-HA0 400G DPU加速網卡TEL:13910098771

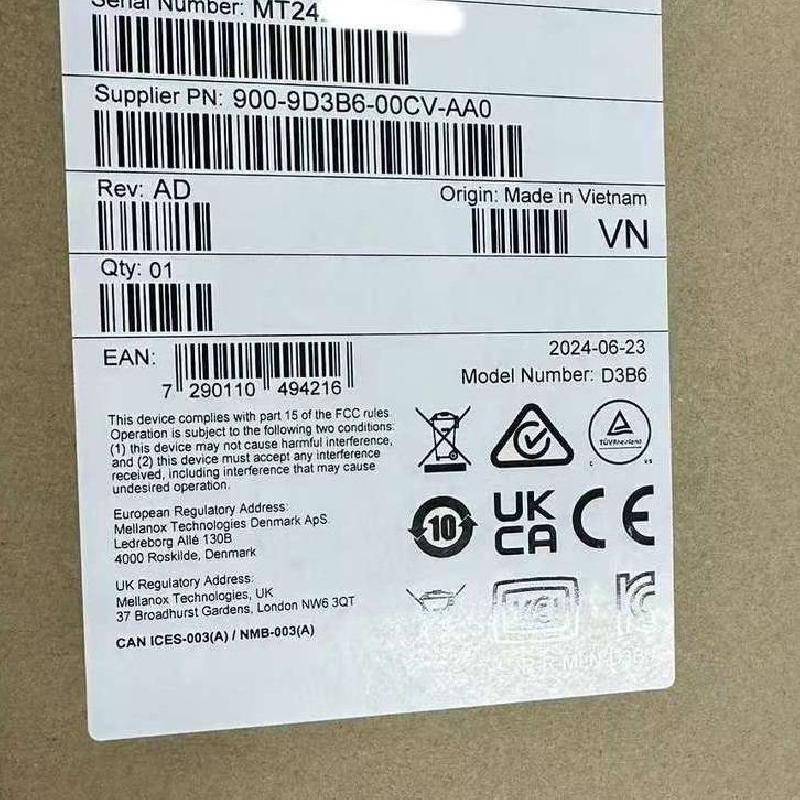

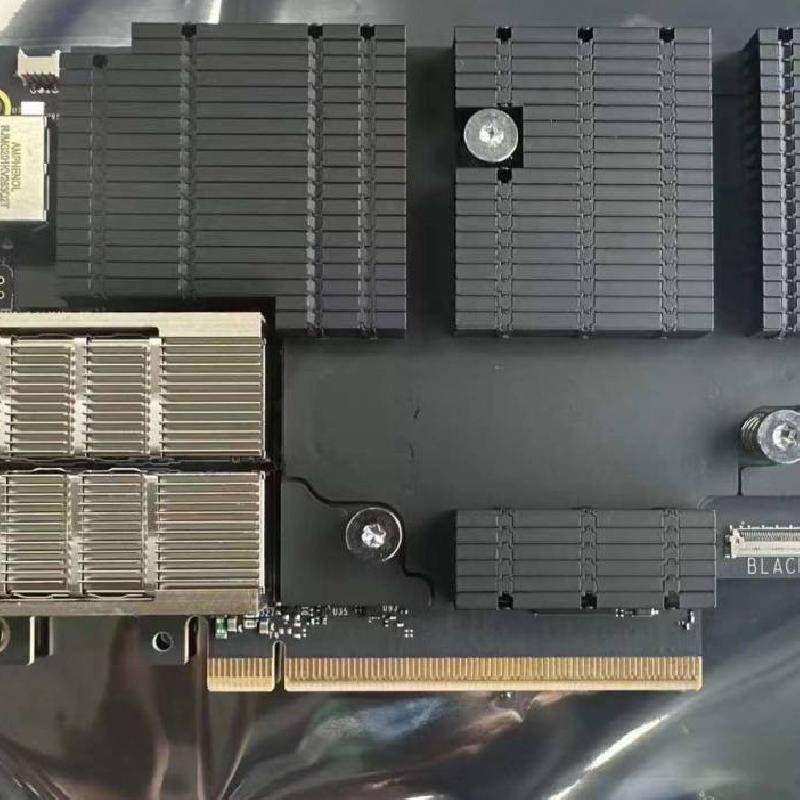

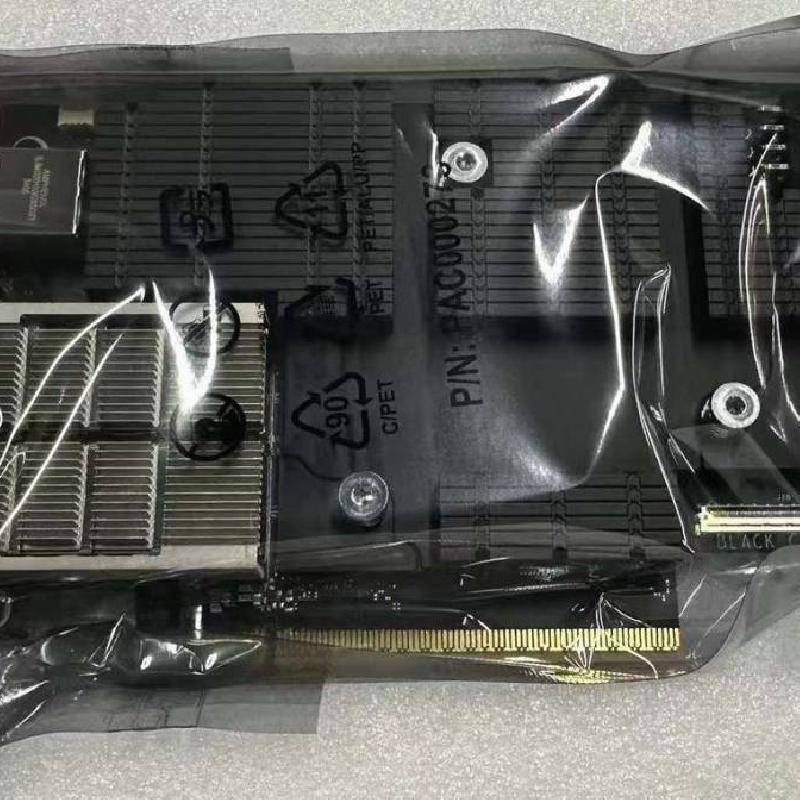

900-9D3B6-00CV-AA0 Nvidia BlueField-3 B3220 P-Series FHHL DPU, 200GbE
NVIDIA BlueField-3 B3220 900-9D3B6-00CV-AA0 200G DPU加速網卡
NVIDIA BlueField-3 B3220 P-Series FHHL D
900-9D3B6-00CV-AA0 NVIDIA BlueField-3 B3220 P-Series FHHL DPU, 200GbE (default mode) / NDR2 00 IB, Dual-port QSFP112, PCIe Gen5.0 x16 with x16 PCIe extension option , 16 Arm cores, 32GB on-board DDR, integrated BMC, Crypto Enabled, Tall Bracket
GIGABYTE H800
NVIDIA HGX" H800 with 8 x SXM5 GPUS
Intel Platinum 8468 48-Core 2.10 GHz *2
64GB DDR5 RDIMM 3200MHz Samsung *32
3.84TB, 2.5" U.2 PClE G4, Samsung PM9A3 *2
480GB (RAID 0) *1
CMT3160 Broadcom SAs3816 with 4x M.2 PClE Gen4 x4
Intel E810-XXV Dual Port 10/25GbE SFP28, OP NIC 3.0 *1
NVIDIA HGX 8xH800 80GB 8x80GB Baseboard w/Heatsink3
KS 4+2 3000W (240V) 80 PLUs Titanium redundant
3 years standard Warranty & Support
GIGABYTE H100
GIGABYTE G593-SD0-AAX1
CPU: 2x Intel Xeon 8468
RAM: 16x 64GB DDR5 4800MHz ECC RDIMM
SSD: 2x 1TB NVMe PCIe SSD 2.5”
NVIDIA HGX H100 8-GPU SXM 80GB 700W GPUs *1
Nvidia ConnectX-7 Single Port NDR200 OSFP PCle *8
Network card: 1x dual-port 25G SFP28 LAN card
Accessories: 2x CPU heatsinks, 1x slide rail kit, 6x server power cables
3 Year KS Support
MCX755106AS-HEAT 200GbE/NDR200 IB Dual-Port QSFP112
MCX75310AAS-NEAT Adapter Card, 400GbE/NDR Single-Port OSFP20
MQM9790-NS2F Quantum 2 NDR InfiniBand Switch 64-ports NDR, 32 OSFP ports
MQM9700-NS2F Quantum 2 NDR InfiniBand Switch 64 ports of 400Gb/s
MQM8790-HS2F Quantum HDR InfiniBand Switch 200Gb/s
40 Port QSFP56
MQM8700-HS2F Quantum 2 NDR InfiniBand Switch 200Gb/s
40 QSFP56 ports
MMA4Z00-NS400 400Gb/s, Single-port, OSFP InfiniBand (IB) and Ethernet (ETH)
MMA4Z00-NS 800Gb/s 2x400Gb/s Twin-port OSFP InfiniBand and Ethernet
MFS1S00-H005V
MFS1S00-H010V
MFS1S00-H015V
MFS1S00-H020V
MFS1S00-H030V
Mellanox MBF2M34***-VENOT ES BlueFieid-2 DPU 200Gb 邁絡思光纖網卡
Nvidia Mellanox MCX68310***N-HDAT HDR 200G單口光纖 IB網卡
Nvidia Mellanox邁絡思 ConnectX-6 DE InfiniBand adapter, HDR, single-port QSFP56, PCIe 4 .0 x16, No Crypto, Tall Bracket
Mellanox 邁絡思交換機
萬兆網卡
25G網卡
40/56G網卡
50G網卡
100G網卡
200G網卡
400G網卡
AOC光纜
DAC線纜
光纖模塊
10G交換機
25G交換機
40G 交換機
56G交換機
100G交換機
200G 交換機
400G交換機
MFS1S00-H010V
MFS1S00-H040E
MFS1S00-H030V
MFS1S00-H015E
MFS1S50-H010E
MFA1A00-E005
MFA1A00-E010
MFA1A00-E015
MFA1A00-E020
MFA1A00-E030
MFA1A00-C005
MFA1A00-C010
MCP1600-E003E26
MCP1600-E001E30
MCP2104-X003B
MFA2P10
MCP1700-B003E
MC2206128-005
MC220731V-005
MC220731V-050
NVIDIA MCX75310AAS-NEAT 400G IB卡 NDR 單端口網卡MCX623106AN-CDAT 光纖網卡NVIDIA Mellanox MCX75510AAS-NEAT ConnectX-7 InfiniBand VPI 400G IB卡 NDR 網卡MCX755106AS-HEAT CX755106A NVIDIA ConnectX-7 VPI 2x200Gb光纖網卡批發
MCX75310AAC-NEAT/MCX75310AAS-NEAT Specifications
ConnectX-7 adapter cards with OSFP form factor support RHS (Riding Heatsink) cage only.
Physical
Iinterfaces
Adapter Card size: PCle Half Height; Half Length 2.71 in. x 6.6 in. (68.90mm x167.65 mm)
See Supported interfaces
PCI Express Gen 4.0/5.0: SERDES @ 16/32GT/s, x16 lanes (Gen 3.0 compatible)
Networking Port: Single OSFP InfiniBand and Ethernet
Data Rate
infiniBand(Default)
Ethernet
NDR/NDR200/HDR/HDR100/EDR/FDR/SDR
400/200/100/50/40/10/1 Gb/s Ethernet
ProtocolSupport
InfiniBand:1BTA v1.5
Auto-Negotiation: NDR (4 lanes x 100Gb/s per lane) port, NDR200 (2 lanes x100Gb/s per lane) port, HDR (50Gb/s per lane) port, HDR100 (2 lane x 50Gb/sper lane), EDR (25Gb/s per lane) port,FDR (14.0625Gb/s per lane)1X/2X/4XSDR(2.5Gb/s perlane).
Ethernet: 400GAU1-4 C2M,400GBASE-CR4,200GAUI-2 C2M,200GAU-4 C2M200GBASE-CR4,100GAU1-2 C2M,100GAU1-1 C2M,100GBASE-CR4,100GBASECR2100GBASE-CR1 50GAU1-2 C2M 50GAU1-1 C2M,50GBASE-CR 50GBASE-R240GBASE-CR440GBASE-R2,25GBASE-R,10GBASE-R10GBASE-CX4.1000BASE-CX,CAU1-4 C2M, 25GAUI C2M,XLAUI C2M，XLPPI SFI
Capabilities
MCX75310AAC-NEAT
MCX75310AASNEAT
Secure Boot Enabled, Crypto Enabled
Secure Boot Enabled, Crypto Disabled
MCX755106AN-HEAT Mellanox ConnectX-7 VPI 400Gb adapter card 400Gb/s HDR,HDR100,EDR 2x QSFP HHHL光纖網卡
MCX755106AS-HEAT CX755106A NVIDIA ConnectX-7 VPI 2x200Gb光纖網卡MCX755106AN-HEAT Mellanox ConnectX-7 VPI 400Gb adapter card 400Gb/s HDR,HDR100,EDR 2x QSFP HHHL光纖網卡ConnectX-1 ConnectX-2 ConnectX-3 ConnectX-4 ConnectX-5 ConnectX-6 ConnectX-7系列光纜網卡Mellanox光纖交換機IB交換機Mellanox交換機線纜Mellanox交換機光纖模塊Mellanox交換機電源等整機及配件批發
| Model | MCX755106AN-HEAT |
| InfiniBand Supported Speeds [Gb/s] | HDR/HDR100/EDR |
| Network Ports and Cages | 2x QSFP |
| Host Interface [PCIe] | With option for extension |
| Form Factor / Feature Support | HHHL |
| Max total bandwidth | 400Gb/s |
| IBTA Spec compliant | 1.5 |
| Number of network ports | 1/2/4 |
| Host interface | PCIe Gen5, up to x32 lanes |
| RDMA message rate | 330-370 million messages per second |
| Acceleration engines | Collective operations MPI All-to-All MPI tag matching Programmable datapath accelerator |
| Advanced storage capabilities | Block level encryption and checksum offloads |
| Accurate timing | PTP 1558v2, 16ns accuracy |
| Secure boot | On-chip with hardware root-of-trust |
| Host management | NC-SI, MCTP over SMBus, and MCTP over PCIe |
Mellanox 全系列 10G 25G 100G 200G 400G網卡
MCX55***-ECAT
MCX556A-ECAT
MCX51***-CCAT
MCX51***-CCUT
MCX516A-CCAT
MCX516A-CDAT
MCX65310***-ECAT
MCX653106A-ECAT
MCX4121A-ACAT
MCX4121A-XCAT
MCX512A-ACAT
MCX512A-ACUT
MCX65310***-HDAT
MCX653106A-HDAT
MCX623106AN-CDAT
MCX631102AN-ADAT
MCX621102AN-ADAT
MCX314A MCX4121A MCX516A MCX45*** MCX456A MCX512A MCX55*** MCX353A-FCBT MCX354A-FCBT MCX354A-FCBT-QCBT MCX556-ECAT等Mellanox光纖網卡IB網卡批發TEL:13910098771
